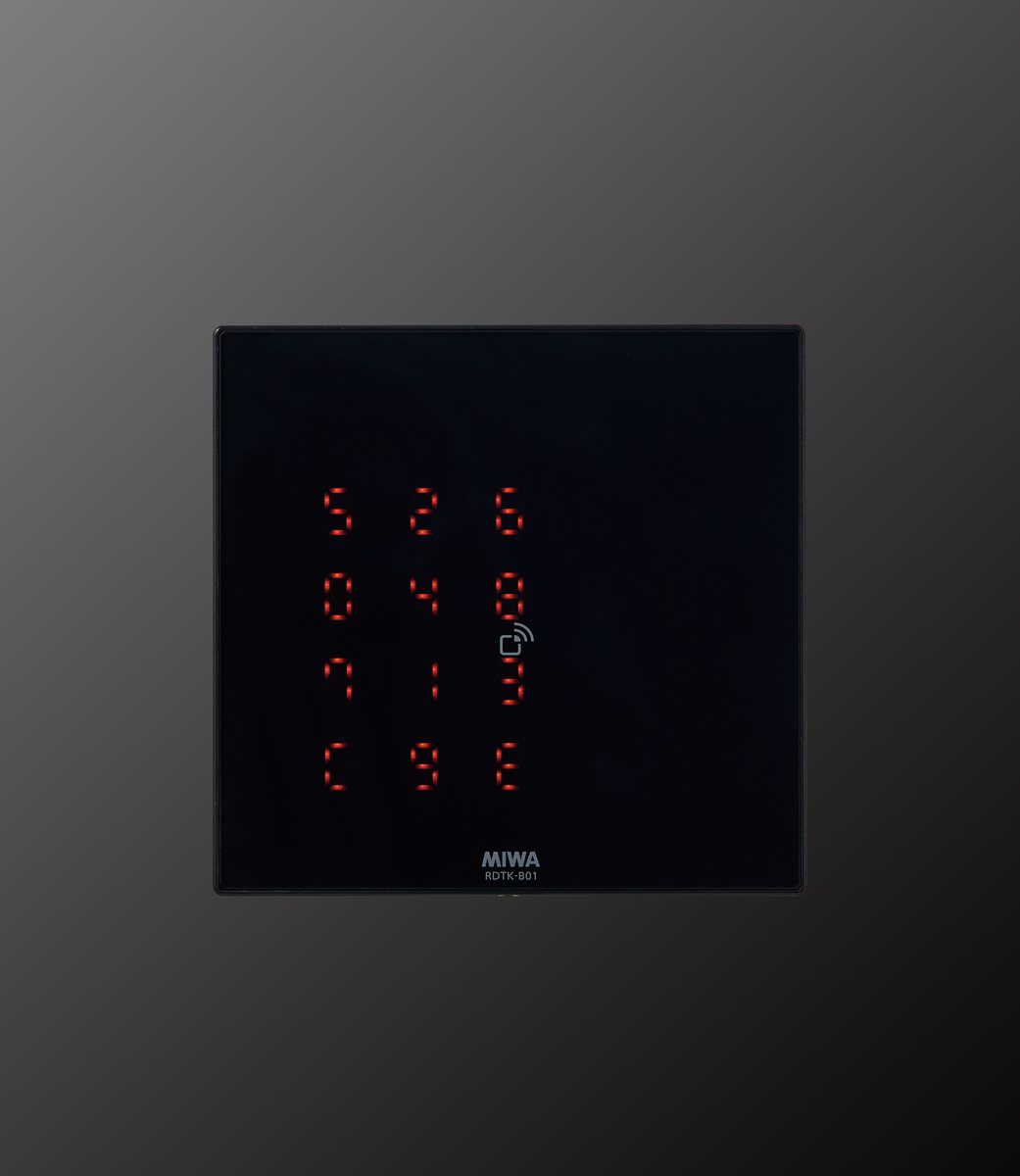

MIWA RDTK-B01 PIN Pad RFID Card Reader
Electronic Lock Systems and Accessories · Miwa · Other Products
Information RequestProduct Description
A multi-authentication access control reader supporting RFID card and PIN for electric locks. The tempered-glass PIN pad provides durability and crime prevention; designed for indoor use in factories, plants, buildings and hospitals. Available without cover (RDTK-B01) and with cover (RDTK-B01CV).
Features
- Selectable OR / AND authentication mode
- MIFARE® and ISO15693 card compatibility
- Magical display function that rotates number positions to prevent wear
- Random display function
- Peep-proof function (RDTK-B01CV)
- RDTK-B01CV operates with card even when the cover is closed
- Scratch-resistant tempered glass panel
- Detection distance 10 mm
Technical Specifications
| Available cards | MIFARE® Standard (Classic) UID (4/7 bytes), MIFARE® Plus TLNF-C01, ISO15693 TLNT-C06A |
|---|---|
| Controller | MIU-301 |
| Material | Tempered glass panel; ASA resin body/cover |
| Finish | Black (BK), White (WH) |
| Operating temperature | −10 to +50 °C |
| Humidity | 30–90% RH |
| IP rating | IPx5 |
| Power supply | 24 VDC |
| Dimensions | RDTK-B01: 115 × 115 × 15 mm, 300 g; RDTK-B01CV: 120 × 134 × 20 mm, 380 g |
