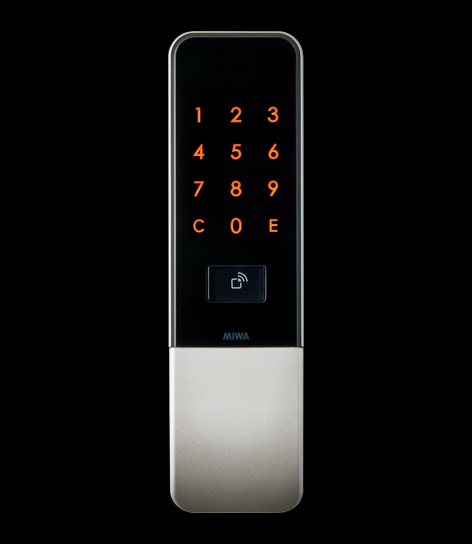

MIWA PiACK II smart Digital Lock (PIN & Card)
Electronic Lock Systems and Accessories · Miwa · Other Products
Information RequestProduct Description
Unlock your door with intelligence — PIN, card, or both. A battery-operated digital lock with RFID and PIN access, featuring an anti-peeping PIN pad and a random fake PIN function that defeats guessing from fingerprint marks.
Features
- Anti-peeping PIN pad
- Random fake PIN function
- Three authentication modes: PIN only, card only, or PIN and card (AND mode)
- Easy locking function in OR mode with PIN registered
- Mechanical key backup for locking/unlocking
- Low battery alert by LED and buzzer; 9V emergency power supply
- Easy installation with MIWA LA and DA series — no additional door work or wiring
- Reversible handing
Technical Specifications
| Model code | DTFL2B(T)D01DAA |
|---|---|
| Door thickness | 33–50 mm |
| Backset | 51 / 64 mm |
| Finish | Black / Silver |
| Compatible cards | MIWA FKL, FeliCa, MIFARE |
| PIN registration | 3–9 PINs (4–12 digits); AND mode 1 PIN (4 digits) |
| Power supply | 4 × AA alkaline or lithium batteries |
| Battery life | Approx. 1 year (10 operations/day) |
| Operating temperature | −5 to +50 °C (alkaline), −30 to +50 °C (lithium) |
| Humidity | 20–80% RH |
| Durability | 100,000 cycles tested |
