MIWA Perimeter Access Control Unit
Electronic Lock Systems and Accessories · Miwa · Hospitality Locking Solution
Information RequestProduct Description

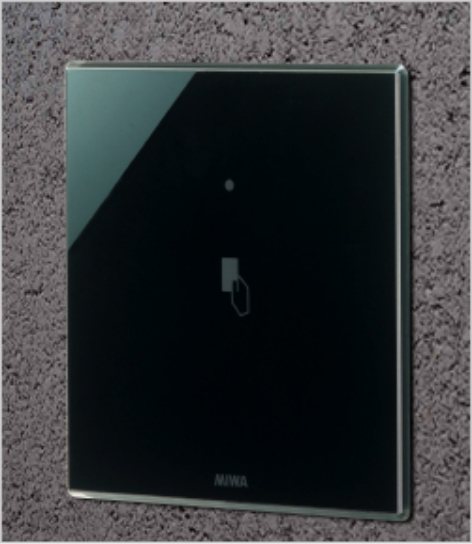

A reader system that restricts entry to valid cardholders at perimeter gates, car parks and building entrances. The RDFL-B04 reader is wall-mounted at the gate and the controller drives the electric lock or automatic door via dry contact.
Features
- Guest and staff card access at perimeter doors
- Drives electric locks and automatic doors (dry contact)
- Up to 4 readers and up to 40 relays per controller
- Mobile key option available
- Black hard coated acrylic reader finish
Technical Specifications
| Reader | RDFL-B04 series, 116 × 120 × 45 mm, 250 g |
|---|---|
| Reader environment | −5 to +50 °C, 20–90% RH (no condensation) |
| Controller | CMHL-501, 400 × 300 × 120 mm, 5 kg |
| Power supply | AC 100–240 V ±10%, 50/60 Hz; 75 VA |
| Contact duration / capacity | 1–59 s adjustable; DC30V/2A, AC250V/2A |
| Controller environment | 0 to +50 °C, 30–95% RH, internal installation only |
