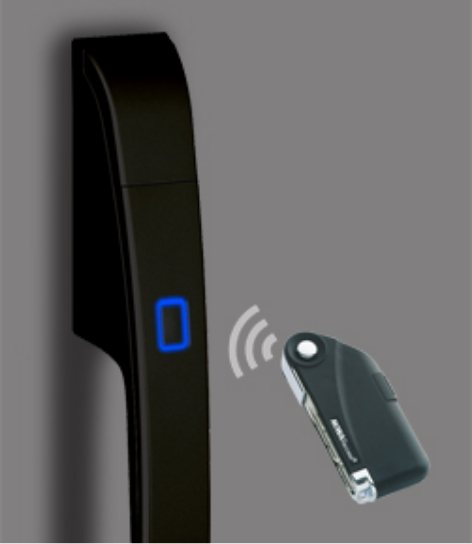

MIWA iEL ZERO Hands-Free Electronic Lock
Electronic Lock Systems and Accessories · Miwa · Other Products
Information RequestProduct Description
A hands-free electronic door lock with integrated RFID reader, activated by the Raccess smart key. Simply approach the door with the key in a pocket or bag; it also offers non-touch card entry and a concealed mechanical cylinder. Features a user-friendly push-pull handle and multiple finishes.
Features
- Hands-free entry (approx. 1 m)
- Non-touch key entry (approx. 10 mm)
- Three entry modes: hands-free, proximity card, mechanical key
- Dual locks with auto lock return; claw deadbolt resisting forced entry
- Built-in 3-colour LED status indicator
- Battery operated; no wiring through the door frame
- Interface with entrance gates, intercoms, delivery boxes and elevators
- Security thumbturn with automatic return; concealed high-security mechanical cylinder
Technical Specifications
| Item code | IRS2PGFBH2WU |
|---|---|
| Power supply | 4 × AA alkaline batteries |
| Backset | 64 mm |
| Door thickness | 36–45 mm |
| Hands-free range | approx. 1 m |
| Non-touch key range | approx. 10 mm |
| Battery life | 9 months (dual mode), 1 year (hands-free only) |
| ID key capacity | Up to 15 |
| Operating temperature | −10 to +50 °C |
| Water resistance | Outside IPX3, inside IPX2 |
| Maximum door weight | 40 kg |
| Finishes | Silver, Matt Black, Rose Gold (single/dual combinations) |
