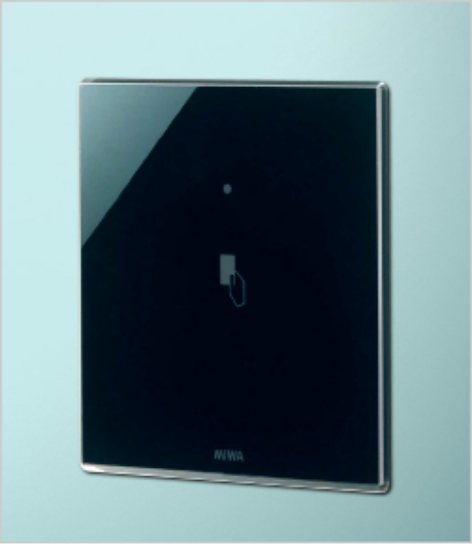

MIWA Elevator Card Reader (RDFL-B04)
Electronic Lock Systems and Accessories · Miwa · Hospitality Locking Solution
Information RequestProduct Description
An RFID reader that allows only guests with a valid key card to access the elevator and certain floors. Designed to be built into the elevator panel, it provides floor-by-floor authorisation together with the CMHL-501 controller.
Features
- Up to 40 dry-contact relays per controller
- Up to 4 card readers under one controller
- Mobile key option available
- Three reader types: RFID only (RDFL-B04H), RFID with BLE (RDFL-B04BLEF), RFID with BLE and human detection sensor
- Black hard coated acrylic finish
Technical Specifications
| Reader dimensions | 116 × 120 × 45 mm |
|---|---|
| Reader weight | 250 g |
| Reader power | Supplied from controller |
| Reader environment | −5 to +50 °C, 20–90% RH (no condensation) |
| CMHL-501 controller | 400 × 300 × 120 mm, 5 kg |
| Power supply | AC 100–240 V ±10%, 50/60 Hz; 75 VA |
| Output | Normal open or close contact, max 40 relays |
| Contact duration / capacity | 1–59 s adjustable; DC30V/2A, AC250V/2A |
| Controller environment | 0 to +50 °C, 30–95% RH, internal installation only |
