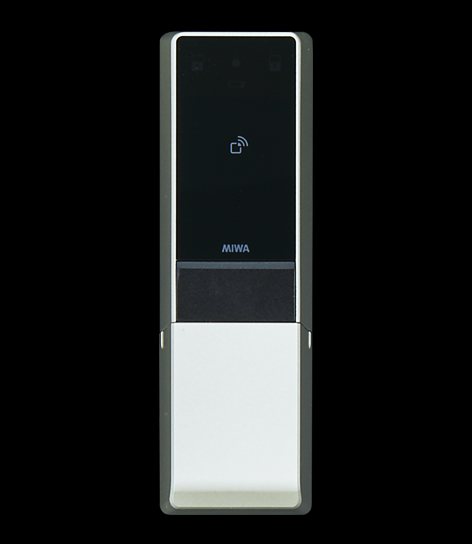

MIWA DTRS II smart Hands-Free Digital Lock
Electronic Lock Systems and Accessories · Miwa · Other Products
Information RequestProduct Description
A battery-operated digital lock for residential use featuring MIWA's hands-free entry system, Raccess. It has mechanical key backup and optional integration with building entrance and elevator systems. Installation with MIWA LA and DA series requires no additional door work or wiring.
Features
- Hands-free Raccess system (approx. 1 m detection)
- Non-touch operation by button proximity
- Mechanical key access
- Low battery alert by LED and buzzer; 9V emergency power supply
- Reversible handing
- Up to 32 registrable IDs
Technical Specifications
| Model code | DTRS(T)D01(C)DAA |
|---|---|
| Compatible cylinders | U9, PR, LB, JN |
| Door thickness | 33–50 mm |
| Backset | 51 / 64 mm |
| Finish | Black / Silver |
| Power supply | 4 × AA alkaline batteries (LR6) |
| Battery life | Approx. 1 year (10 operations/day) |
| Operating temperature | Outdoor −10 to +50 °C, indoor 0 to +50 °C |
| Humidity | 20–80% RH |
| Durability | 100,000 cycles tested |
| Registrable IDs | 32 |
