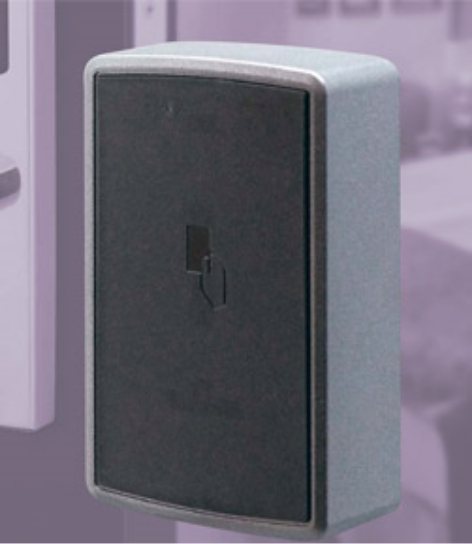

MIWA Door Control Unit (DCU)
Electronic Lock Systems and Accessories · Miwa · Hospitality Locking Solution
Information RequestProduct Description
A wall-mounted RFID reader system with an MPC1 controller for high-usage common doors where a standard battery-operated lock is not the right choice. It gives guest and staff card access to lobbies, gyms, car parks and back-of-house doors.
Features
- Compatible with common door access applications
- Programmable automatic lock/unlock at predetermined times
- DC12V or DC24V output for magnetic locks, panic bars or electric strikes
- Battery back-up capability (battery not included)
- Mobile key option available
- Three reader options: DCU.DP (wall mount), DCU4.DP and DCU3.DP (surface mount)
Technical Specifications
| DCU.DP reader | 121 × 184 × 68.8 mm, 300 g |
|---|---|
| DCU4.DP reader | 126.5 × 126.5 × 16.7 mm, 109 g |
| DCU3.DP reader | 76 × 120 × 33 mm, 270 g |
| Reader power | Supplied from controller |
| Reader environment | −5 to +50 °C, 20–80% RH (no condensation) |
| MPC1 controller | 330 × 343 × 86 mm, 2.86 kg |
| Power input | AC100V/1.5A or AC230V/1.0A |
| Output | Normal open or close contact, 1 relay; contact duration 3–18 s adjustable; DC30V/5A |
| Controller environment | 0 to +50 °C, 20–80% RH, internal installation only |
| Certifications | UL 60950-1, EN 60950-1, EN 61000-6-3, EN 55011, EN 55032 |
