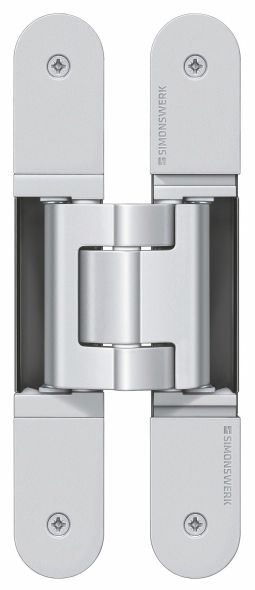

Tectus Hinge TE 540 3D
Architectural Hardware Products · Simonswerk (Door Hinge Technology)
Information RequestProduct Description
TE 540 3D | For flush heavy-duty doors and special-function doors
Technical Information
| Load Capacity | 120 kg |
| Length (leaf/frame): | 200,0/200,0 mm |
| Width (leaf/frame): | 32,0/32,0 mm |
| Barrel diameter: | 24,0 mm |
| Pivot Bearing Adjustment Range: | Lateral: +/- 3 mm, height: +/- 3 mm, depth: +/- 1 mm |
Product Features
The Simonswerk Tectus TE 540 3D hinge is fully concealed for flush (unrebated) doors with wood, steel and aluminium frames. It is easy to install thanks to its simplified 3-dimensional adjustment. With a load capacity of 120 kg, an opening angle of 180 degrees, suitability for both right-hand and left-hand leaves, and a maintenance-free, friction-free pivot bearing, the Tectus hinge offers a long service life.
