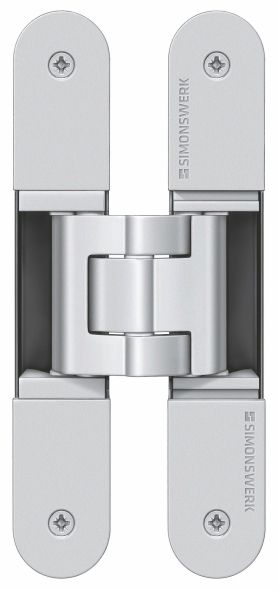

Tectus Hinge TE 340 3D
Architectural Hardware Products · Simonswerk (Door Hinge Technology)
Information RequestProduct Description
TE 340 3D | For unrebated residential doors
Technical Information
| Weight capacity | 80 kg |
| Length (leaf/frame): | 160.0/160.0 mm |
| Width (leaf/frame): | 28.0/28.0 mm |
| Knuckle diameter: | 24.0 mm |
| Bearing adjustment values: | Lateral: +/- 3 mm, height: +/- 3 mm, depth: +/- 1 mm |
Product Features
The Simonswerk Tectus TE 340 3D hinge is fully concealed for unrebated doors with wooden, steel and aluminium frames. It is easy to install thanks to its simplified 3-dimensional adjustment. With an 80 kg load capacity, a 180-degree opening angle, suitability for both right- and left-hand leaves and a maintenance-free, frictionless bearing, the Tectus hinge has a long service life.
