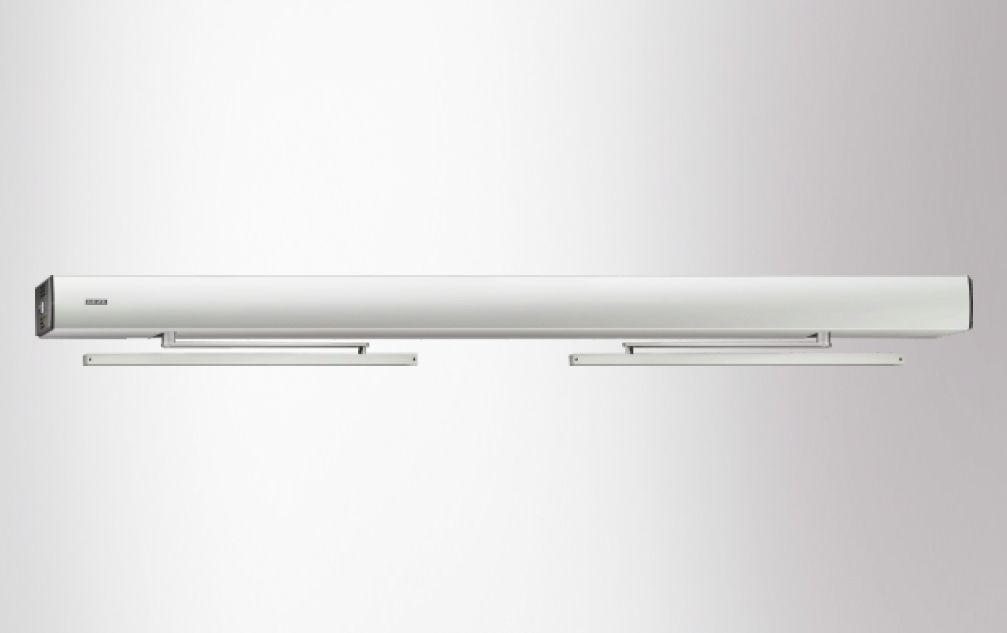

Product Description
Technical Specifications
| Supply | 230V AC 50/60 Hz |
| Power consumption | 200V |
| Integrated program switch | Position I: On Position 0: Off Position II: Permanently open |
| In the event of a power failure | Acts as a door closer |
| Dimensions (length x height x depth) | 690 mm x 100 mm x 120 mm |
| Maximum leaf width | 1400 mm |
| Maximum leaf weight | 250 kg |
Adjustable Functions
| Hold-open time | Adjustable between 0-60 s |
| Closing force | EN 2-6 |
| Opening speed | Adjustable on the hydraulic valve |
| Closing speed | Adjustable on the hydraulic valve |
| Latching action | Adjustable on the hydraulic valve |
| Back-check | Adjustable on the hydraulic valve |
| Door opening angle | 115° |
Optional Parts
- GC 302 R Radar
- AS 500 Button
- GC 334 Safety Photocell
