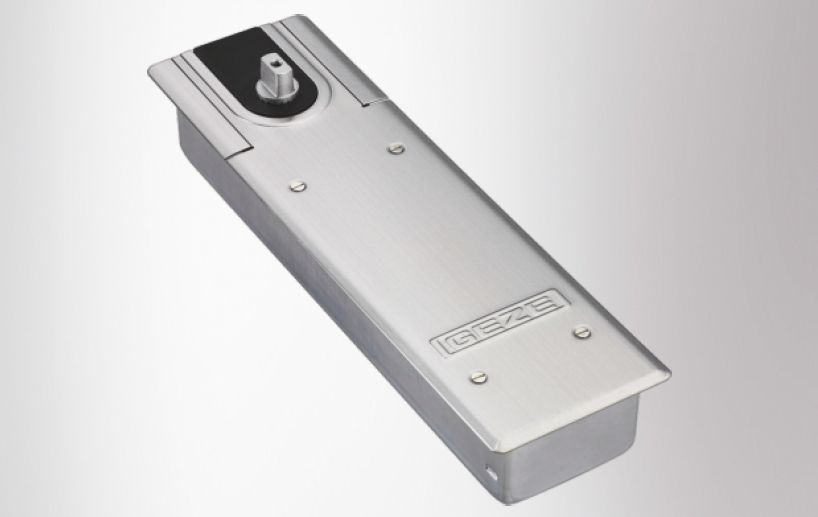

TS 550 NV Floor-Recessed Hydraulic Door Closer

Product Features

• Conforms to EN 3-6 under EN 1154
• Adjustable closing speed
• Closing force adjustable from the surface
• Stepped hold-open between 80 and 120 degrees
• Maximum opening angle of 170 degrees
• Switches to closing mode after 175 degrees
• Leaf weight capacity of 300 kg
• Safety valve against overload
• Robust, aesthetic body
• Axis adjustment
• Standard colour: stainless satin cover
• With removable pin

Applications

• Rebated and double-action (swing) doors
• Glass, aluminium, wooden and steel doors
• Doors up to 1400 mm wide
