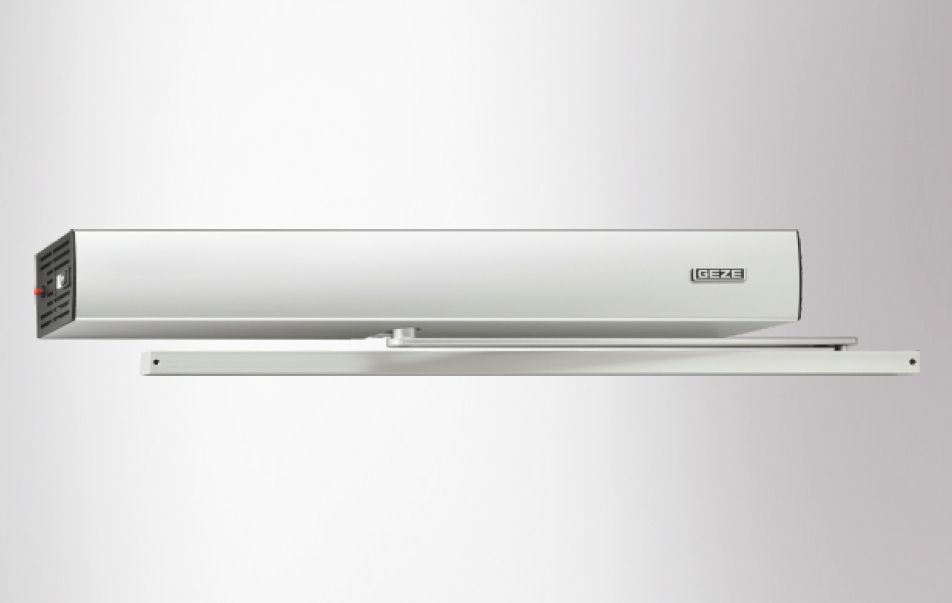

SlimDrive EMD Automatic Leaf Opening Mechanism
Architectural Hardware Products · Geze
Information RequestProduct Description
Technical Specifications
| Supply | 230V AC 50/60 Hz |
| Power consumption | 200W |
| Integrated program switch | Position I: On Position 0: Off Position II: Permanently open |
| During power outages | Acts as a door closer |
| Dimensions (length x height x depth) | 650 mm x 70 mm x 121 mm |
| Maximum leaf width | 1400 mm |
| Maximum leaf weight | 180 kg |
Adjustable Functions
| Closing force | EN 3-6 |
| Opening speed | Adjustable via the hydraulic valve |
| Closing speed | Adjustable via the hydraulic valve |
| Latching action | Adjustable via the hydraulic valve |
| Back-check | Adjustable via the hydraulic valve |
| Door opening angle | 115° |
Optional Parts
- GC 302 R Radar
- AS 500 Button
- GC 34 Safety Photocell
