Product Description
Product Features
- Large opening distances
- Locking with extra steel spring and piston pushing force
- Extra double mechanical locking system
- E 350 mechanism options with 3 different aesthetically pleasing opening distances
- 40x47 mm mechanism dimensions
- Quiet operation
- 230V AC supply
- 750 N load capacity
- Complies with IP65 standards
- Opening speed 5 mm/s
Areas of Use

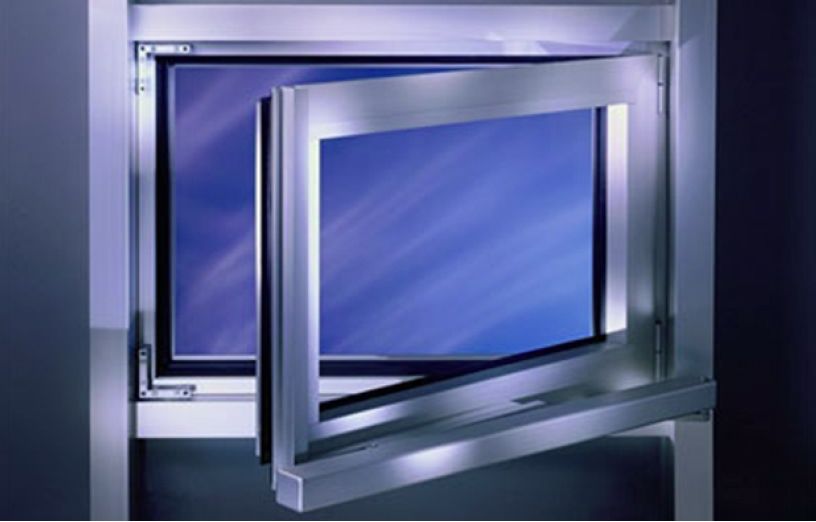

- On aluminium, wooden and plastic window frames that are vertically mounted and open as inward-opening top-hung, bottom-hung or side-hung sashes
- On natural ventilation windows
- For top-hung openings;
- Maximum sash width: 1500 mm
- Maximum sash height: 535-2335 mm - For side-hung openings;
- Maximum sash width: 535-2335 mm
- Maximum sash height: 1500 mm
