Product Description
Product Features
- Large opening distances
- Locking with extra steel spring and piston pushing force
- Multiple locking points possible for large widths and heights
- E 350 mechanism options with 3 different aesthetically pleasing opening distances
- 40x47 mm mechanism dimensions
- Quiet operation
- 230V AC supply
- 750 N load capacity
- Complies with IP65 standards
Areas of Use

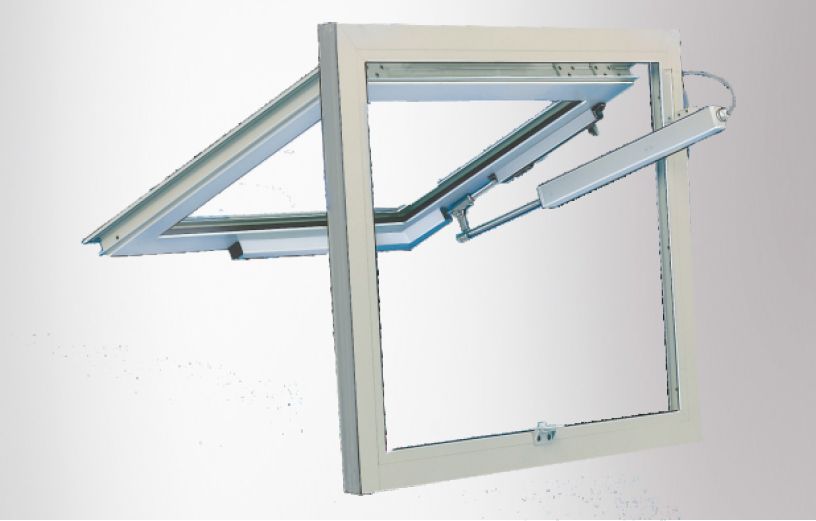

- On aluminium, wooden and plastic window frames that are vertically mounted and open as inward-opening top-hung, bottom-hung or side-hung sashes
- On high windows
- On natural ventilation windows
- Maximum sash width, aluminium: 1200 mm
- Maximum sash width, wood: 1200 mm
- Maximum sash width, plastic: 800 mm
- Minimum sash height: 680 mm
- Maximum sash height: 1600 mm
- Maximum sash weight: 30 kg/m2 (outward-opening)
- Maximum sash weight: 25 kg/m2 (inward-opening)
