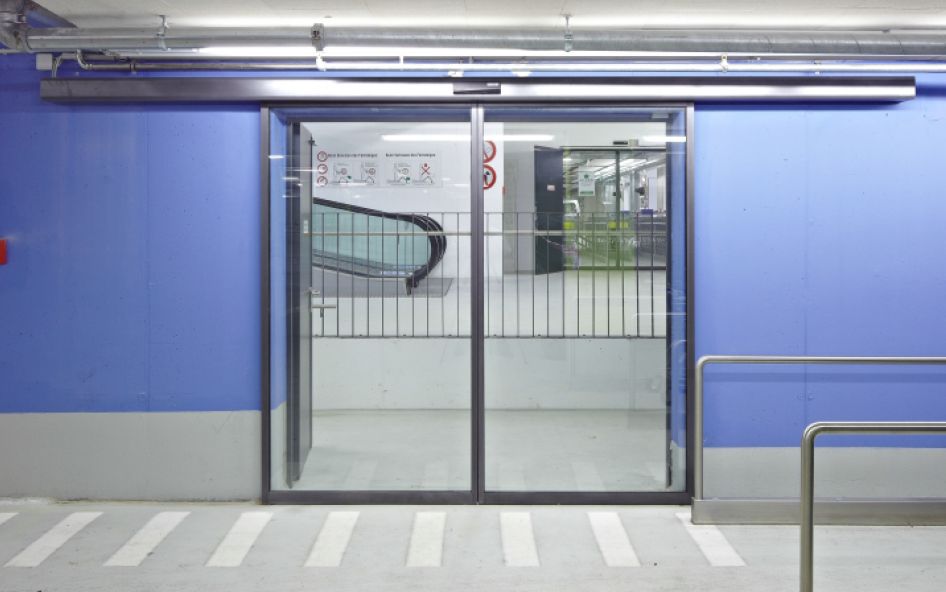

Product Description
Technical Specifications
| Mechanism housing size (depth x height) | 175 mm x 120 mm |
| Single-leaf doors | Maximum leaf weight: 120 kg Clear opening: 700-3000 mm |

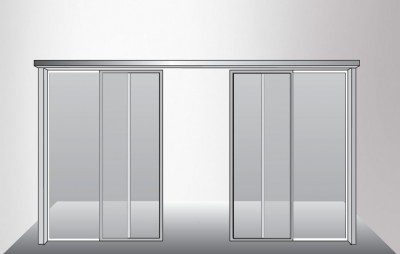

| Double-leaf doors | Maximum leaf weight: 2 x 120 kg Clear opening: 900-3000 mm |
| Maximum leaf height | 3000 mm |
| Maximum opening speed (m/s) | 0.8 m/s |
| Maximum closing speed (m/s) | 0.8 m/s |
| Hold-open time | 0-60 s |
| Maximum closing force | 150 N |
| Motor | DC motor - wear-resistant and high-performance |
| Power supply | 230V AC 50/60 Hz |
Control Unit
- Microprocessor control unit with self-learning capability (Bosch - Siemens)
- Permanent position adjustment of the door leaves with a contactless distance-measuring system
- Door leaf adjustment possible with an acceleration-measuring counter
- Separate, variable width settings for winter and summer
- Electromagnetic locking (optional)
- Visual fault warning system transmitted by radio signals
- NC backup battery unit (allows the door to be opened or closed in emergencies and during power outages)

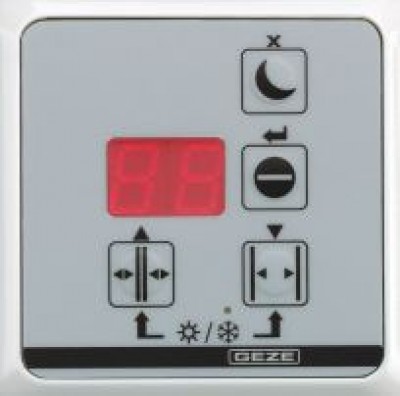

- Digital program switch with 5 functions and an LCD display
Program Switch Functions
- Permanently open
- Night - locked
- Partial opening
- Automatic
- One-way opening
Safety Functions
- Radar with curtain photocell
- Leaves automatically reopen when they meet an obstacle in the closing direction
- Anti-block device in the door opening direction
- Manual release pin for emergencies (optional)
- Integrated energy insulation
Activators
- Radar (Standard)
- Key switch (Optional)
- Elbow button (Optional)
- Keypad code system (Optional)
- Hand sensor (Optional)
Warranty and Certificates
- DIN, ISO 9001 Certificate
- DIN EN ISO 13849 / Performance Level D
- TÜV and CE Certificate
- 2-year product warranty against manufacturing defects
- 1-year service warranty against workmanship and installation defects
