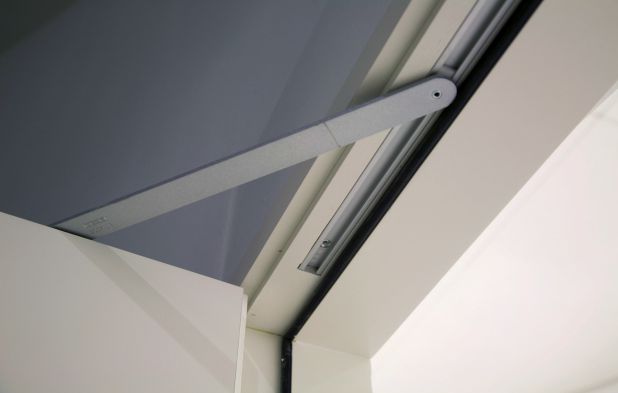

Boxer Concealed Hydraulic Door Closer for Leaf Integration
Architectural Hardware Products · Geze
Information RequestProduct Description
Product Features
- Door closer conforming to EN 2-4 and 3-6 of EN 1154, recessed into the leaf
- Adjustable latching speed
- Adjustable closing speed
- 130 kg load capacity
- Hold-open feature with optional slide rail
- Adjustable closing force
Areas of Use
- Rebated, right/left aluminum, wooden and steel doors
- Interior/exterior doors opening inward and outward
EN2-4 Model:
Door weight 130 kg
Door thickness min. 40 mm
Door width 1100 mm
EN 3-6 Model:
Door weight 180 kg
Door thickness min. 50 mm
